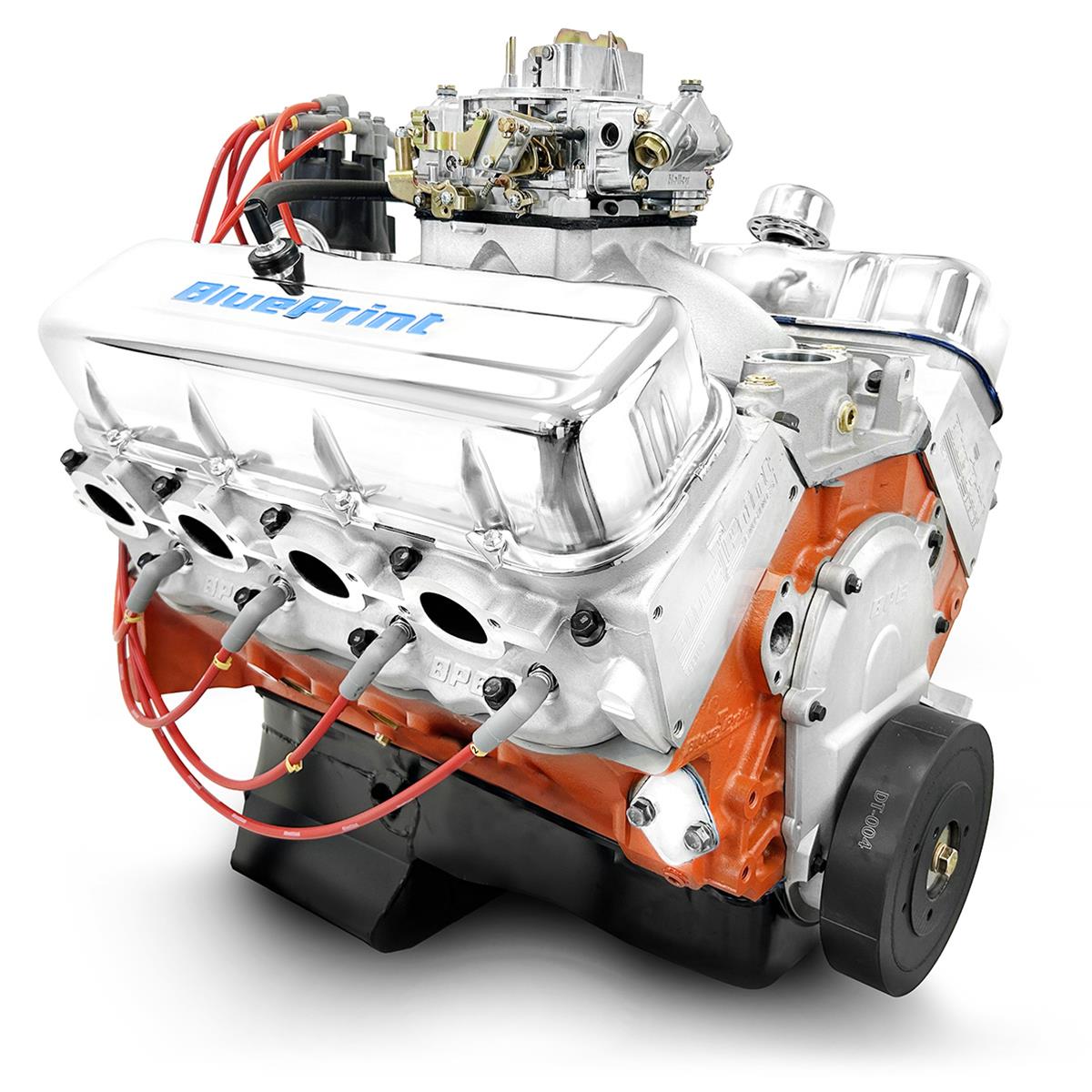

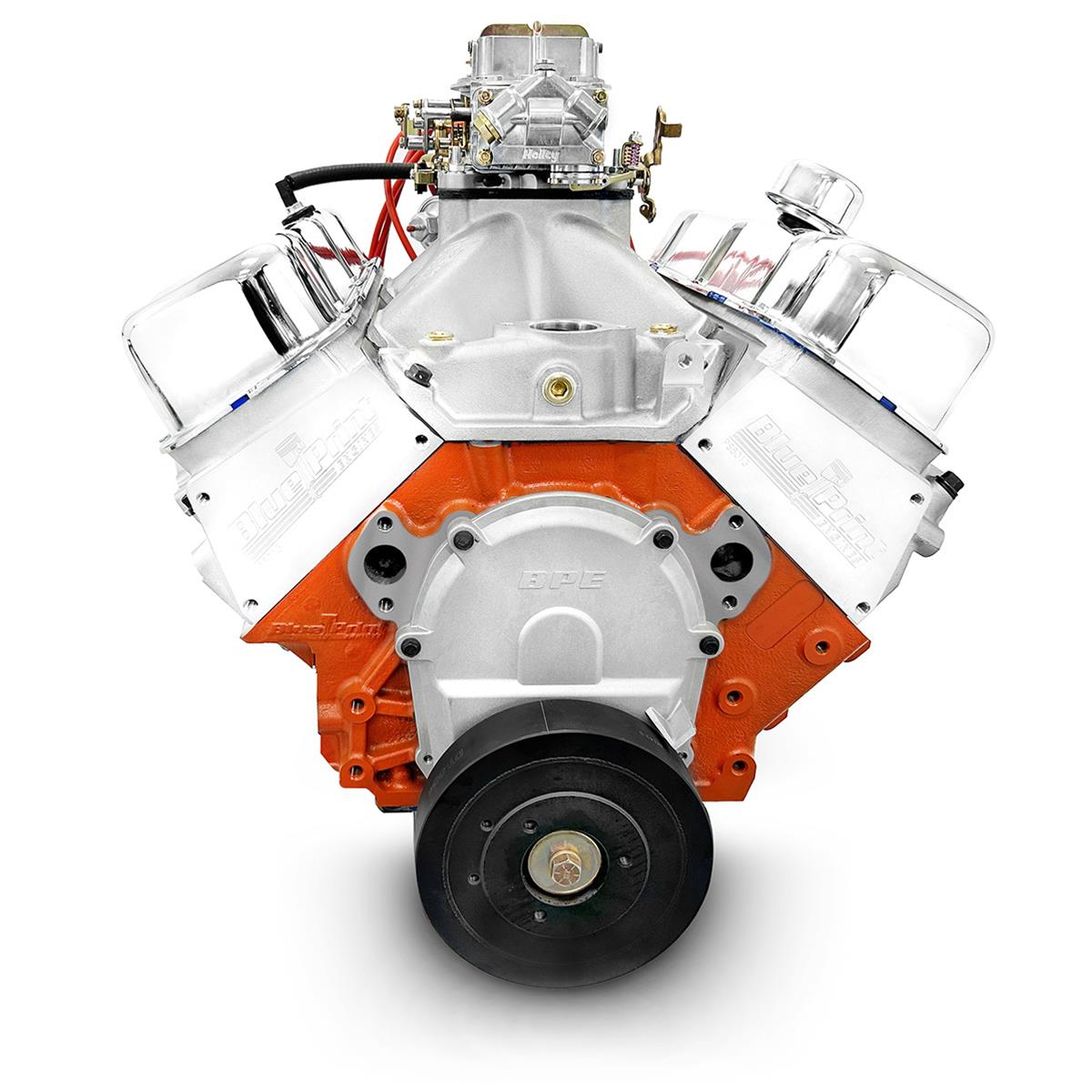

BluePrint Engines Pro Series Chevy 540 C.I.D. 670 HP Dressed Long Block Crate Engines

Enter the realm of pavement-grinding power with the BluePrint Pro Series Chevy 540 c.i.d. dressed long block crate engines. These 670 hp powerhouses feature a 30-month/50,000-mile warranty and they are the perfect choice for drivability and reliable high-end performance. Additionally, these assemblies are manufactured under strict tolerances and provide outstanding, consistent results. All of the rotating assemblies are balanced within 2 grams on a computerized balancer. BluePrint Pro Series crate engines are also dyno-tested and include the dyno sheets. For high-horsepower, big displacement engines, BluePrint Pro Series Chevy 540 c.i.d. dressed crate engines are the way to go!

Features include:

* New BluePrint Block
* 4 bolt mains
* Forged crankshaft
* Forged connecting rods
* Hydraulic roller camshaft
– Lift = 0.647 in. / 0.647 in.
– Duration @ 0.050 in. = 248 / 254 degrees
– Lobe Separation = 112 degrees
* Double roller timing chain
* Aluminum cylinder heads
* Carburetor
* Billet distributor
