Name: Wilwood Forged Narrow Superlite 4R Big Brake Rear Parking Brake Kits 140-16152-D
SKU: 1711
Availability: InStock

$3,250.00

Disc Brakes, Rear, Forged Narrow Superlite, Cross-Drilled/Slotted Rotors, 4-Piston Black Calipers, Ford 9 in., Kit

Category: Brake Systems

Description

Overview

Brand: Wilwood Disc Brakes

Manufacturer’s Part Number: 140-16152-D

Part Type: Disc Brake Kits

Product Line: Wilwood Forged Narrow Superlite 4R Big Brake Rear Parking Brake Kits

Summit Racing Part Number: WIL-140-16152-D

UPC: 889545097399

Position: Rear

Front Rotor Included: No

Brake Rotor Bolt Pattern (in.): Triple 5 x 4.50 in./5 x 4.75 in./5 x 5.00 in.

Brake Rotor Bolt Pattern (mm): Triple 5 x 114.30mm/5 x 120.65mm/5 x 127.00mm

Differential Case Design Type: Ford 9 in.

Axle Housing Flange Style: Small Ford (3.336 in. x 2.00 in.)

Rear Rotor Included: Yes

Rear Rotor Style: Cross-drilled/Slotted surface

Rear Rotor Construction: Vented

Rear Rotor Diameter: 14.00 in./355.60mm

Rear Rotor Thickness (in.): 1.10

Front Caliper Included:

Rear Caliper Included: Yes

Rear Caliper Piston Quantity: Four

Rear Caliper Material: Forged billet aluminum

Rear Caliper Color: Black

Brake Pads Included: Yes

Friction Material Name: BP-10

Parking Brake Provision: Yes

Parking Brake Style: Electric caliper

Minimum Recommended Wheel Diameter (in.): 18 in.

Offset (in.): 2.500 in.

Front Spindles Included: No

Master Cylinder Included: No

Brake Booster Included: No

Remanufactured: No

Brake Hoses Included: No

Quantity: Sold as a kit.

Wilwood Forged Narrow Superlite 4R Big Brake Rear Parking Brake Kits

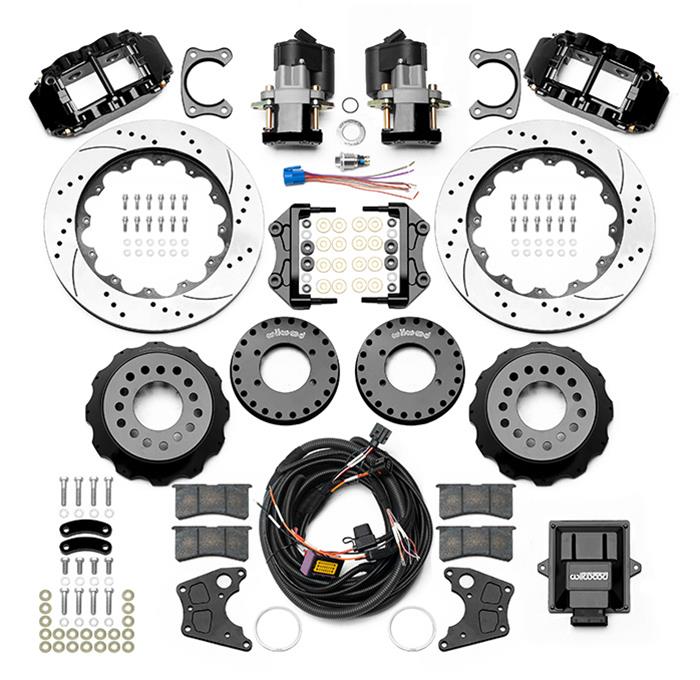

Wilwood Forged Narrow Superlite 4R Big Brake rear parking brake kits are the perfect addition to front Big Brake upgrades for incredible stopping power. These disc brake kits feature FNSL4R 4-piston oversize forged billet aluminum calipers, 13 or 14 in. 2-piece premium rotors, and high performance BP-10 compound pads. Also included is a high-quality, drum-style parking brake assembly. The neatly hidden internal shoe system provides a clean installation, with superior static holding power for parking. Wilwood Forged Narrow Superlite 4R Big Brake rear parking brake kits provide the extra power to reel in your beast. Order the kit designed for your vehicle application.
